Sheet metal bending:
Meramont S.A.

Sheet metal bending is a type of plastic working, where the deformation of the material takes place through the application of high pressure. The entire process can be carried out cold when the material is thin or hot when the thickness of the material is so great that the necesary pressure exceeds the capacity of the machine. Bending allows you to obtain even a complicated shape while maintaining the thickness of the material used.

How is the sheet bending process performed?

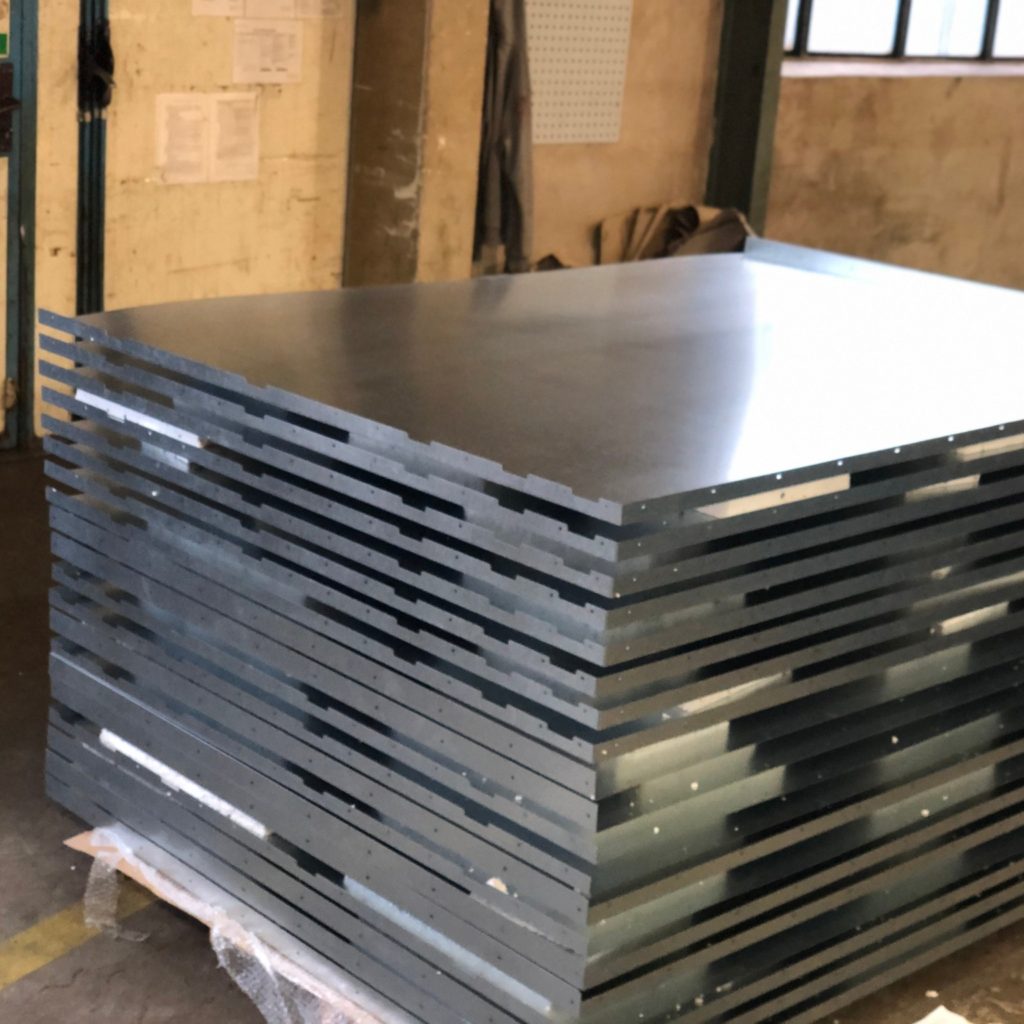

Sheet metal bending is the next stage of production after laser cutting. The bending process takes place on two tools: a die and a punch. There are 3 basic stages of this plastic working:

  1. The stage of elastic deformation of the material, where after removing the pressure, the processed detail can still return to its original shape
  2. The stage of elastic deformation of the material, where the set pressure is so large that it causes a permanent change in the shape of the detail,
  3. The press-in stage where the final shape is obtained.

There are 3 main areas in the material during the bending process. The first one is on the inside of the inflection. In this case, the material layers are compressed which causes a shortening in the longitudinal direction and an elongation in the transverse direction. The second area is on the outer side of the inflection, where the die side material layers are elongated in the longitudinal direction and shortened in the transverse direction. In the middle of the material thickness there is the last area in which the phenomenon of shortening and lengthening is not observed.

There are 3 main areas in the material during the bending process. The first one is on the inside of the inflection. In this case, the material layers are compressed which causes a shortening in the longitudinal direction and an elongation in the transverse direction. The second area is on the outer side of the inflection, where the die side material layers are elongated in the longitudinal direction and shortened in the transverse direction. In the middle of the material thickness there is the last area in which the phenomenon of shortening and lengthening is not observed.

The scope of services offered in the field of sheet bending

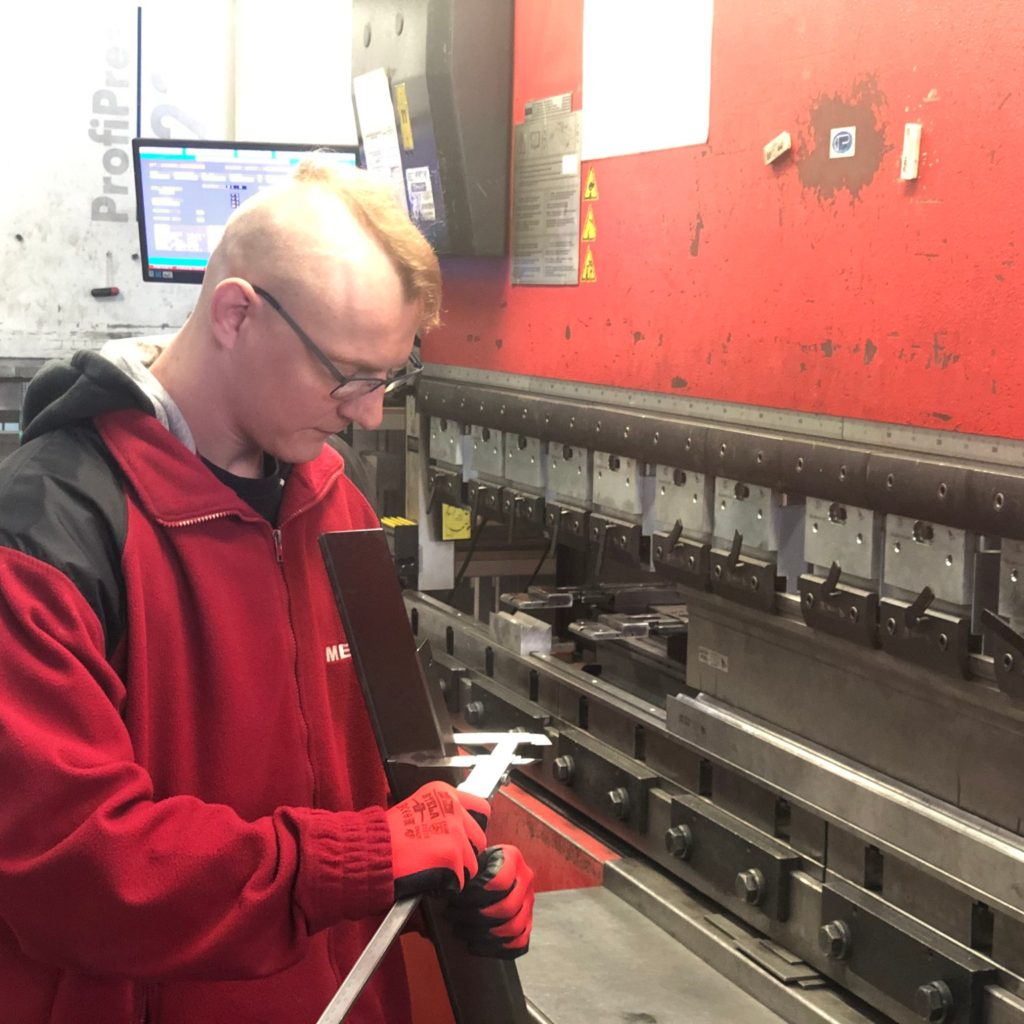

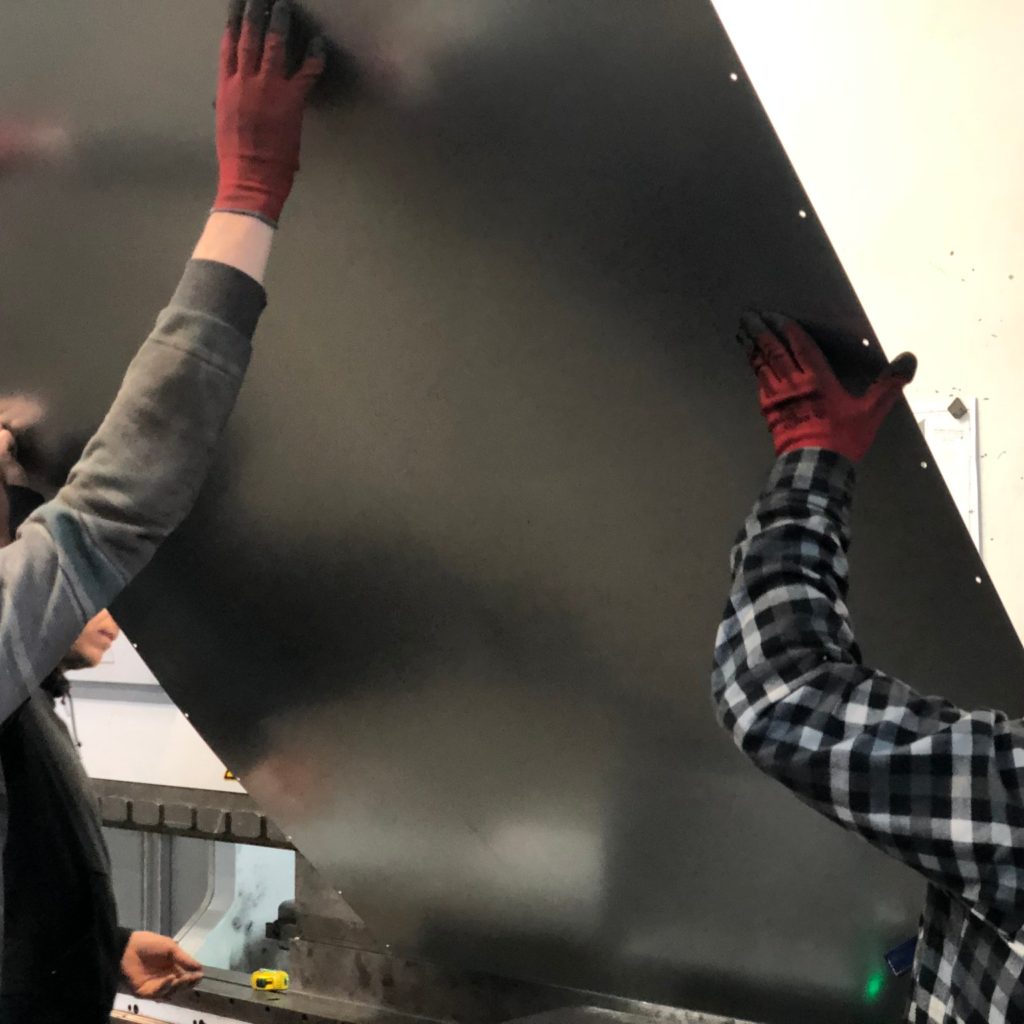

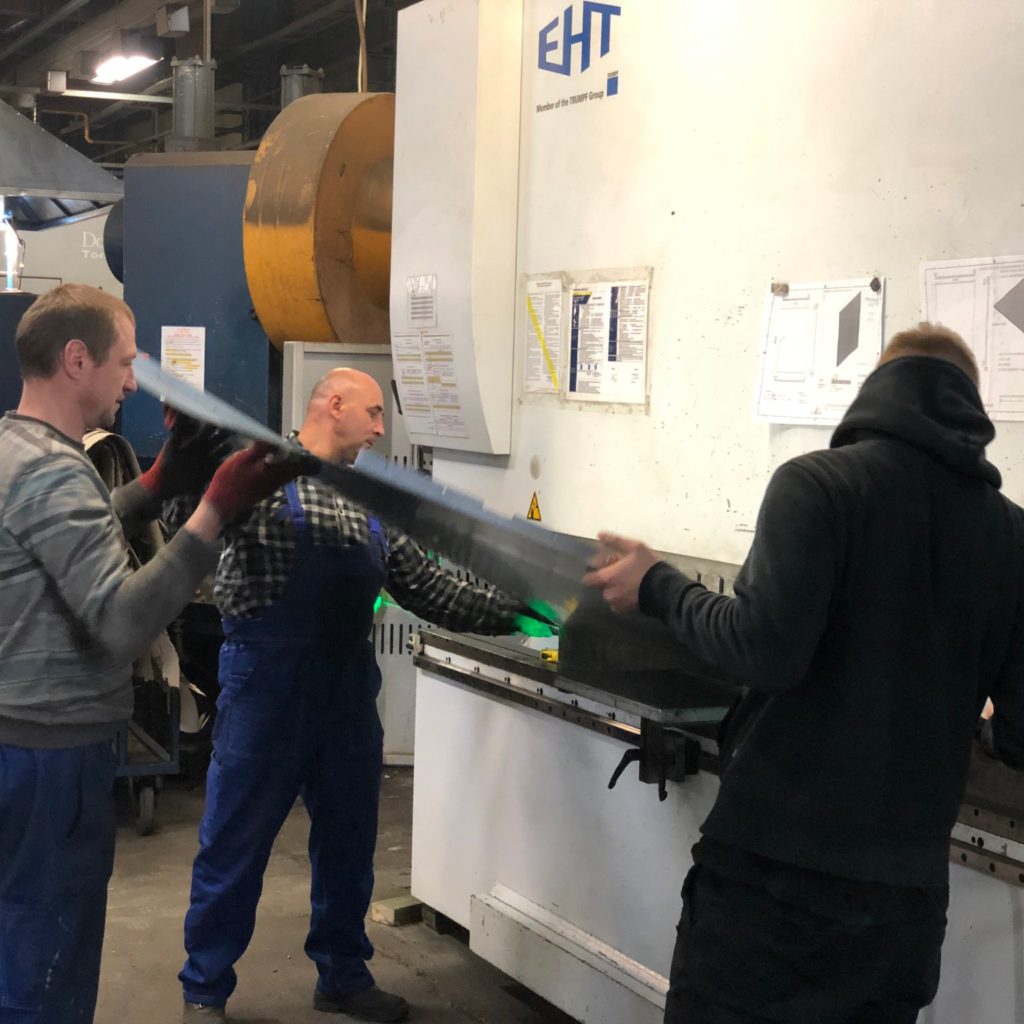

Our company performs sheet metal bending on CNC press brakes. These are modern machines that can program the entire machining process, which eliminates human error and allows you to make even very complex bends. Additionally, a modern CNC press brake ensures repeatability of the processed details, which is perfect for serial production. We offer a wide range of sheet metal bending with the following parameters:

  1. The maximum length of bent elements is 4 m,
  2. The maximum sheet thickness is 12 mm,
  3. The possibility of using various types of materials,
  4. Possibility to use different bending radii,
  5. The maximum pressure of the press is 240 tons.

We have many years of experience in the field of sheet metal bending and qualified personnel who ensure the repeatability of shapes and the quality of each order. Our CNC presses allow for the production of complex shapes and precise reproduction of details. The speed of the process ensures efficient execution of your task at a convenient time. We also have an experienced team of experts who will help you optimize the shape of the detail and the parameters of plastic processing.
